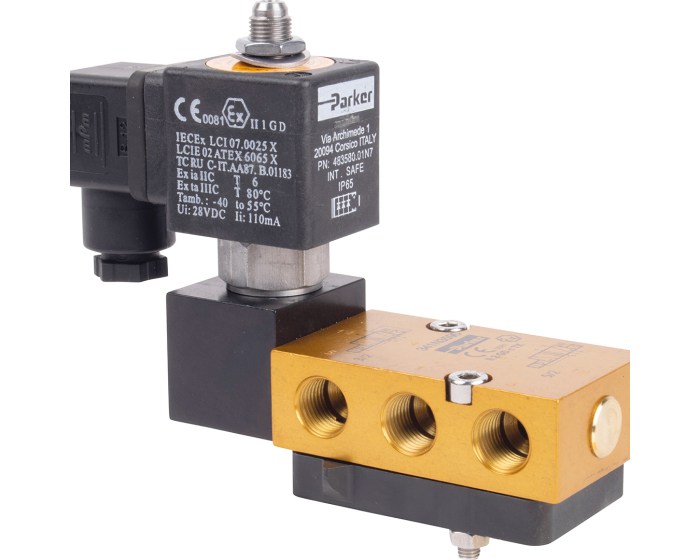

Control of pneumatic actuators 1/4 turn in ATEX zone, II 1G Ex ia IIC T6 for zones 0, 20, 1, 21, 2 and 22. Fluid : dry or lubricated air. TS : -20 / +50°C.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S100895 |
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| ATEX protection mode | EEx ia |
| ATEX zone | 0. 20 |
| CE_CERT | CE |
| Connector | T22 |
| Electrical connection | M20 x 1.5 |
| Fluid | Air / Neutral gases / Filtered |
| In categories | Namur solenoid pilot valves |
| Body material | Aluminium |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 2 |
| PS (bar) | 10 |
| Pilot (NAMUR) | Parker |
| Protection index (IP) | IP 67 |
| SKU | 042403 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 3/2 - 5/2 |
| Surface temperature | T6 |
| TS max (°C) | 80 |
| TS min (°C) | -25 |
| Voltage | 24 V DC |
| Warranty period | 1 year |
